Home Products TitanL80

TitanL80

5W Internal Radio

Equipped with 5W high power internal radio, radio signa covers up to 20km.13600mAh large capacity built-in battery, the opperation duration is up to 8-10hours(Base mode, 5W power), 40-44hours(Rover mode, radio)

Contact Us Now
Overview

Highlight

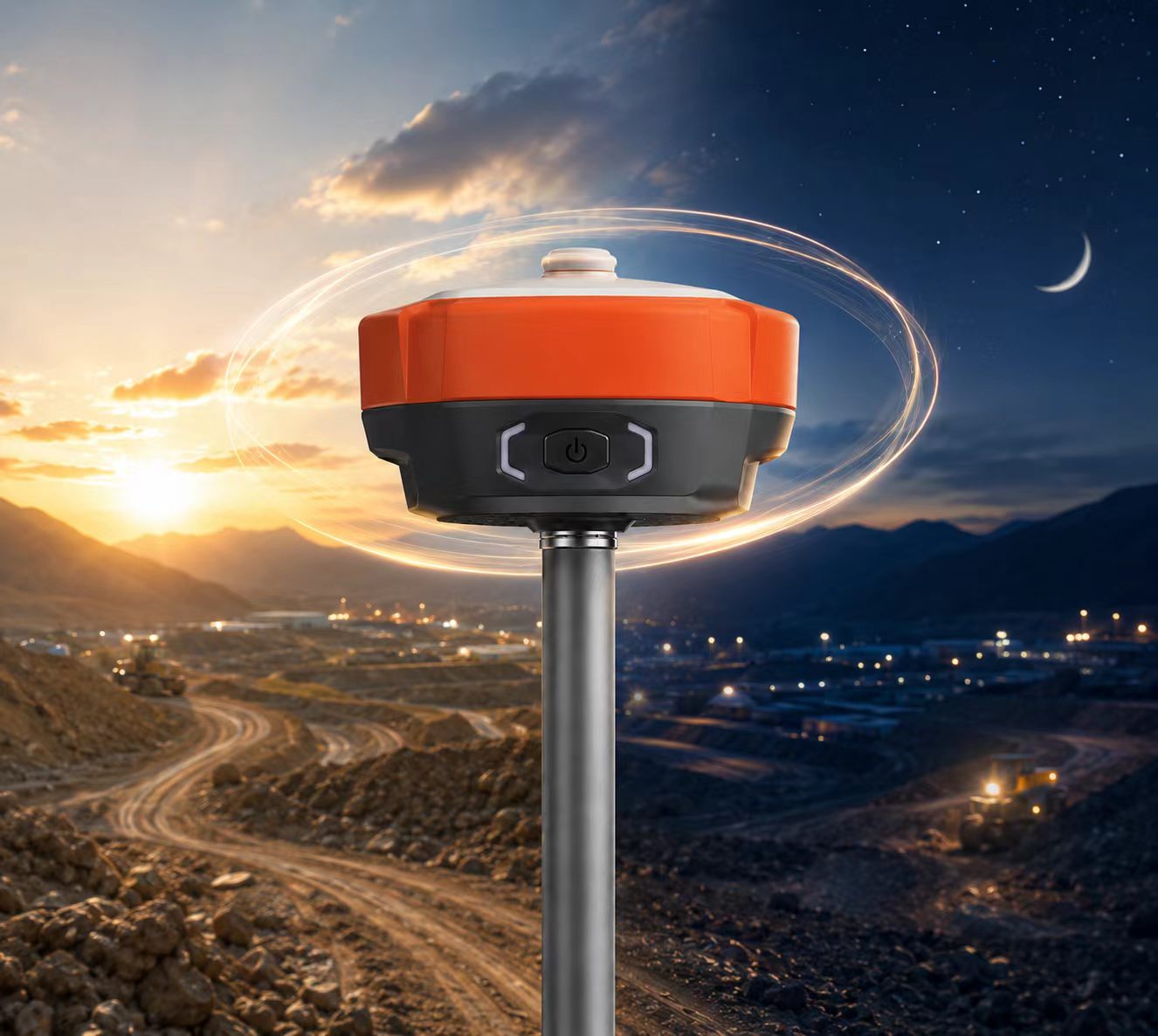

10+ Hours Runtime
Built with a 13600mAh high-density large-capacity built-in battery, this device delivers long-lasting endurance for field operations. Under base mode with 5W low-power consumption, the continuous working duration can stably reach 8 to 10 hours, fully meeting the all-day outdoor surveying and mapping work demands.

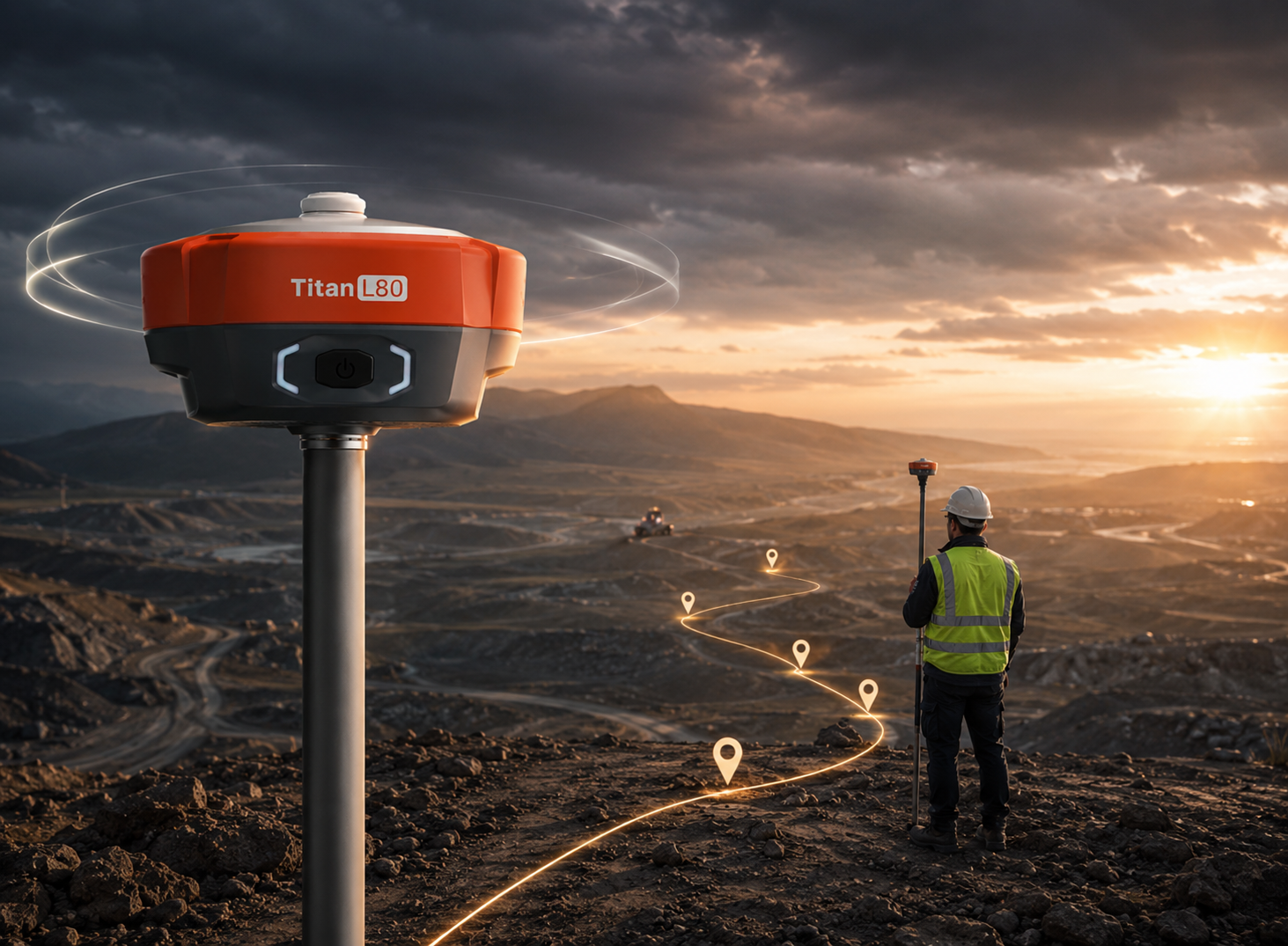

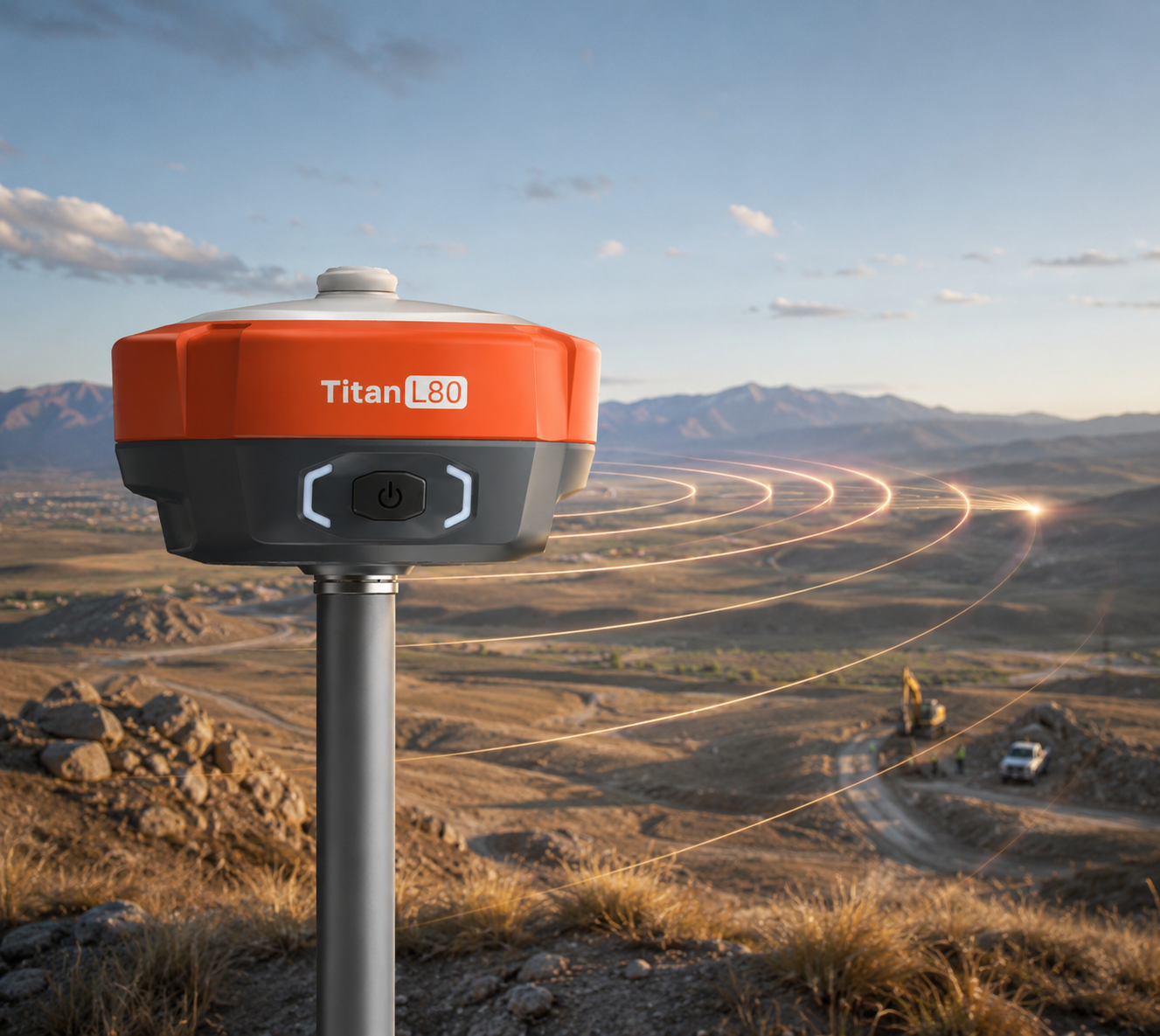

Super Base Long Range
Equipped with a built-in 5W high-power internal radio module, it delivers strong signal penetration and stable long-distance transmission. The effective radio coverage distance can reach up to 20 kilometers, ensuring reliable differential data communication in complex field environments.

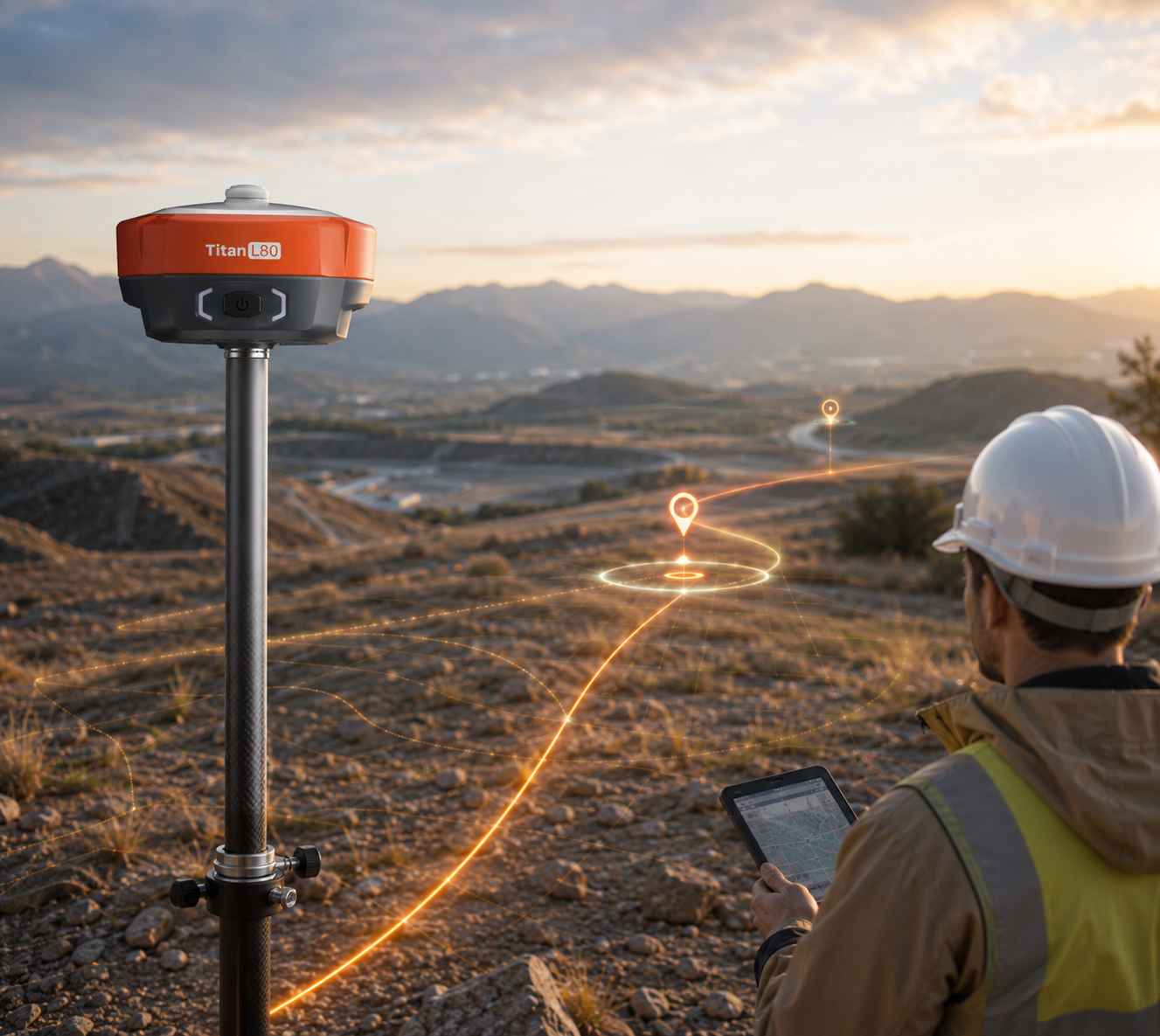

Augmented Reality
Overlaying digital information onto the real world .Assisting to view the stakeout location and see designed features in real time
Extended Battery Life
Super Base
Augmented Reality
10+ Hours Runtime
Built with a 13600mAh high-density large-capacity built-in battery, this device delivers long-lasting endurance for field operations. Under base mode with 5W low-power consumption, the continuous working duration can stably reach 8 to 10 hours, fully meeting the all-day outdoor surveying and mapping work demands.
Super Base Long Range
Equipped with a built-in 5W high-power internal radio module, it delivers strong signal penetration and stable long-distance transmission. The effective radio coverage distance can reach up to 20 kilometers, ensuring reliable differential data communication in complex field environments.
Augmented Reality
Overlaying digital information onto the real world .Assisting to view the stakeout location and see designed features in real time

Benefits and Performances

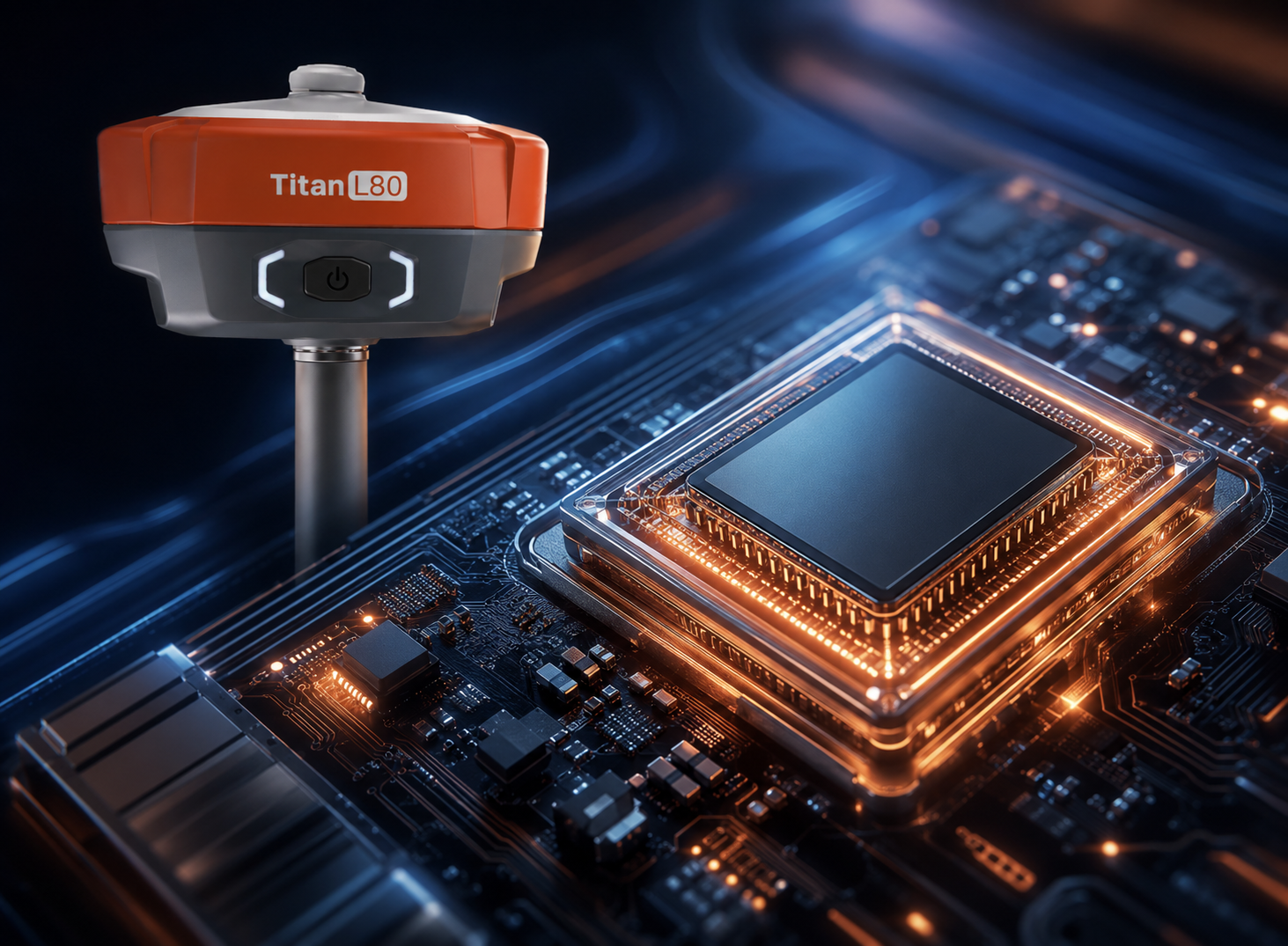

  • 01New-Generation SoC −

    Powerful GNSS SoC chip with 1408 channels Supporting the new Beidou B3l, Galieo E6 tracking and G-FlX supported
    Powerful GNSS SoC chip with 1408 channels Supporting the new Beidou B3l, Galieo E6 tracking and G-FlX supported

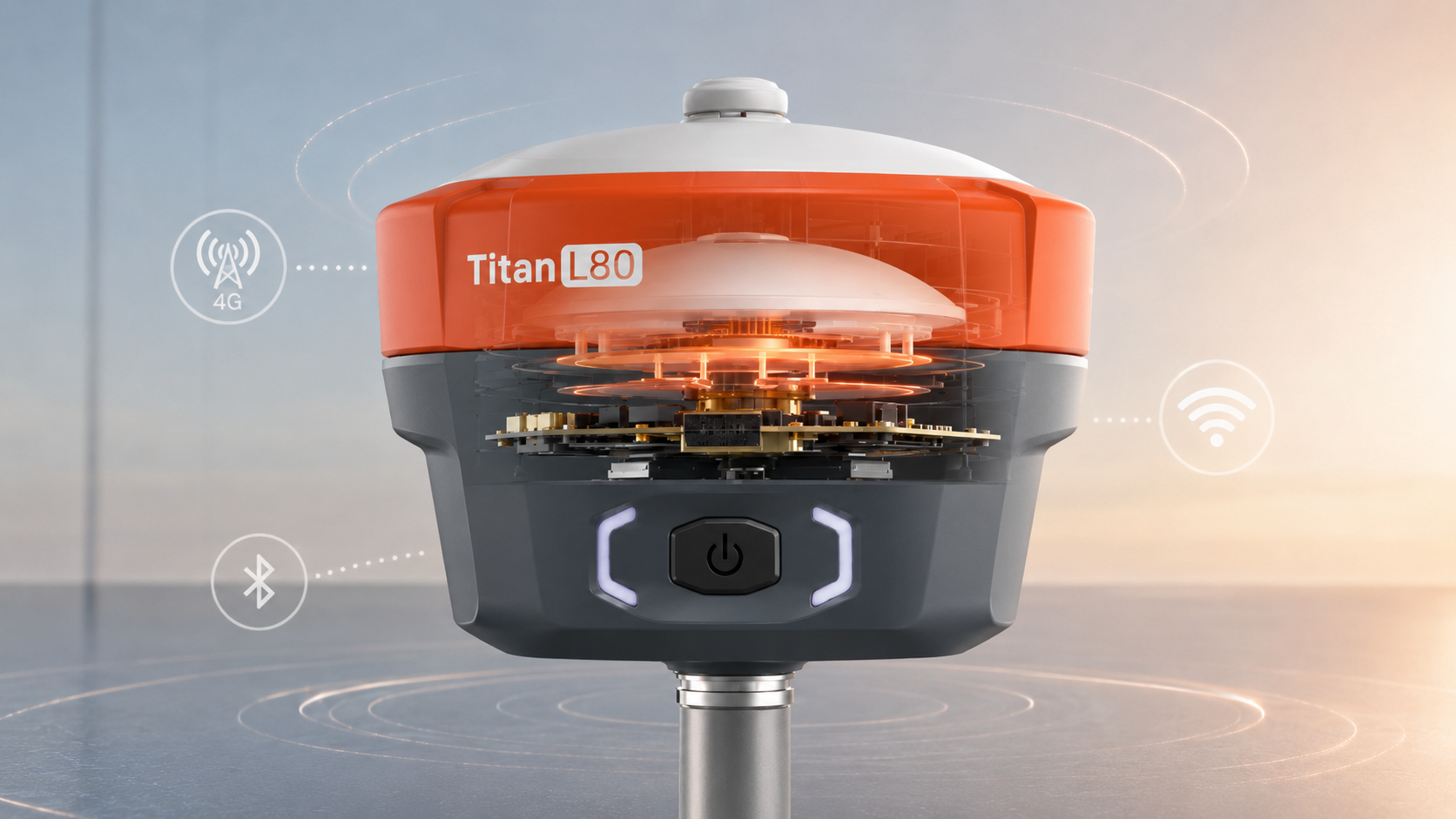

  • 02New Antenna Combination +

    Highly integrated GNSS,4G, wifi, and Bluetooth antennas. Powerful performance. smaller size
    Highly integrated GNSS,4G, wifi, and Bluetooth antennas. Powerful performance. smaller size

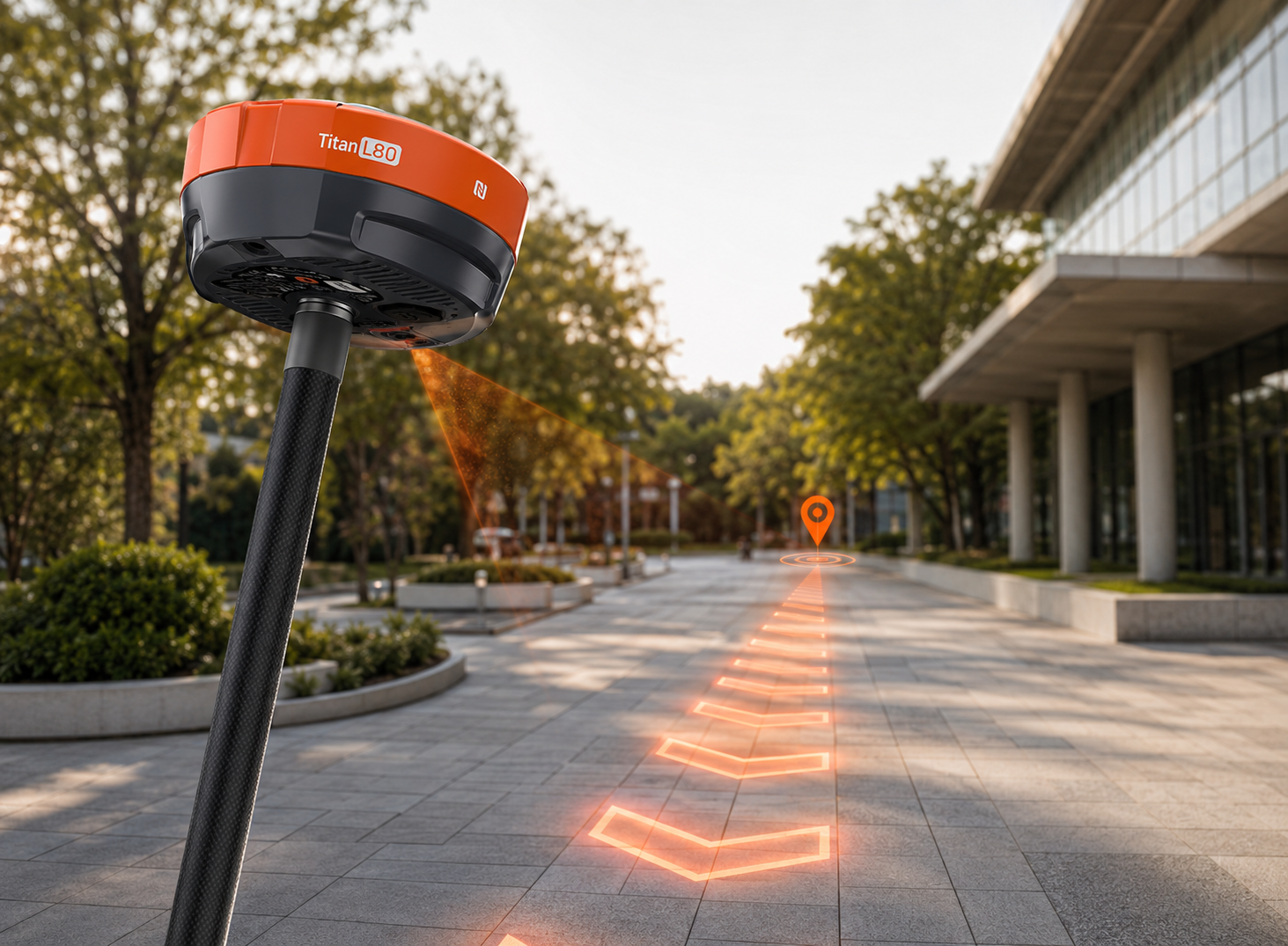

  • 03Professional Camera +

    High-resolution night vision camera. Broad perspective, sophisticated algorithms guaranteeing the precision up to 1cm. Seamlessly combining 360-degree AR visual stakeout andimage AR visual stakeout.
    High-resolution night vision camera. Broad perspective, sophisticated algorithms guaranteeing the precision up to 1cm. Seamlessly combining 360-degree AR visual stakeout andimage AR visual stakeout.

  • 04G-FlX Correction outage Technology +

    Extending RTK positioning up to 10mins Reducing downtime waiting to re-establish RTk corrections
    Extending RTK positioning up to 10mins Reducing downtime waiting to re-establish RTk corrections

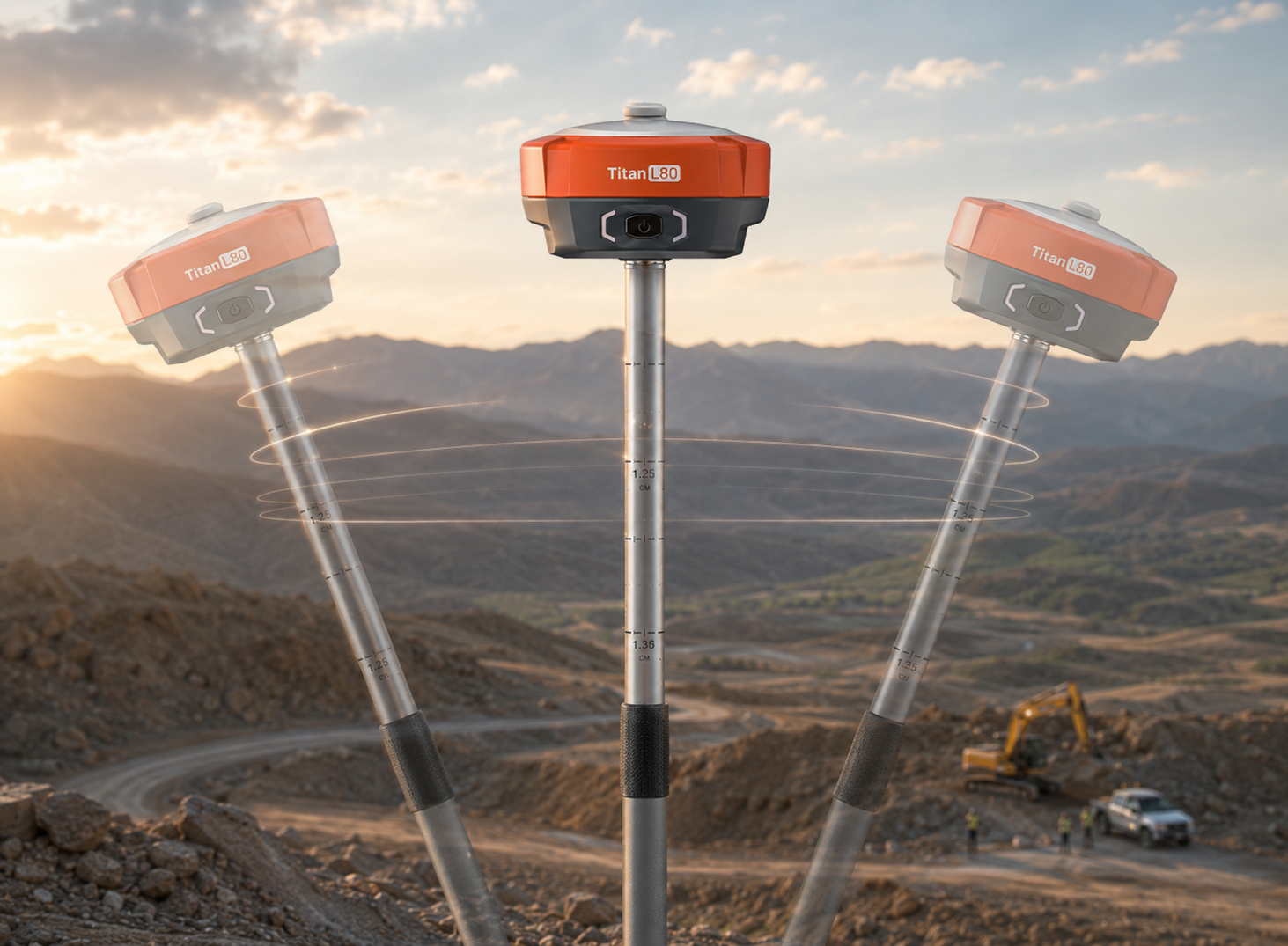

  • 05Calibration-Free Tilt Compensation +

    Calibration and initialization FREE Ready for tilt survey straight out of the box
    Calibration and initialization FREE Ready for tilt survey straight out of the box

Product Details

Specifications
Resources

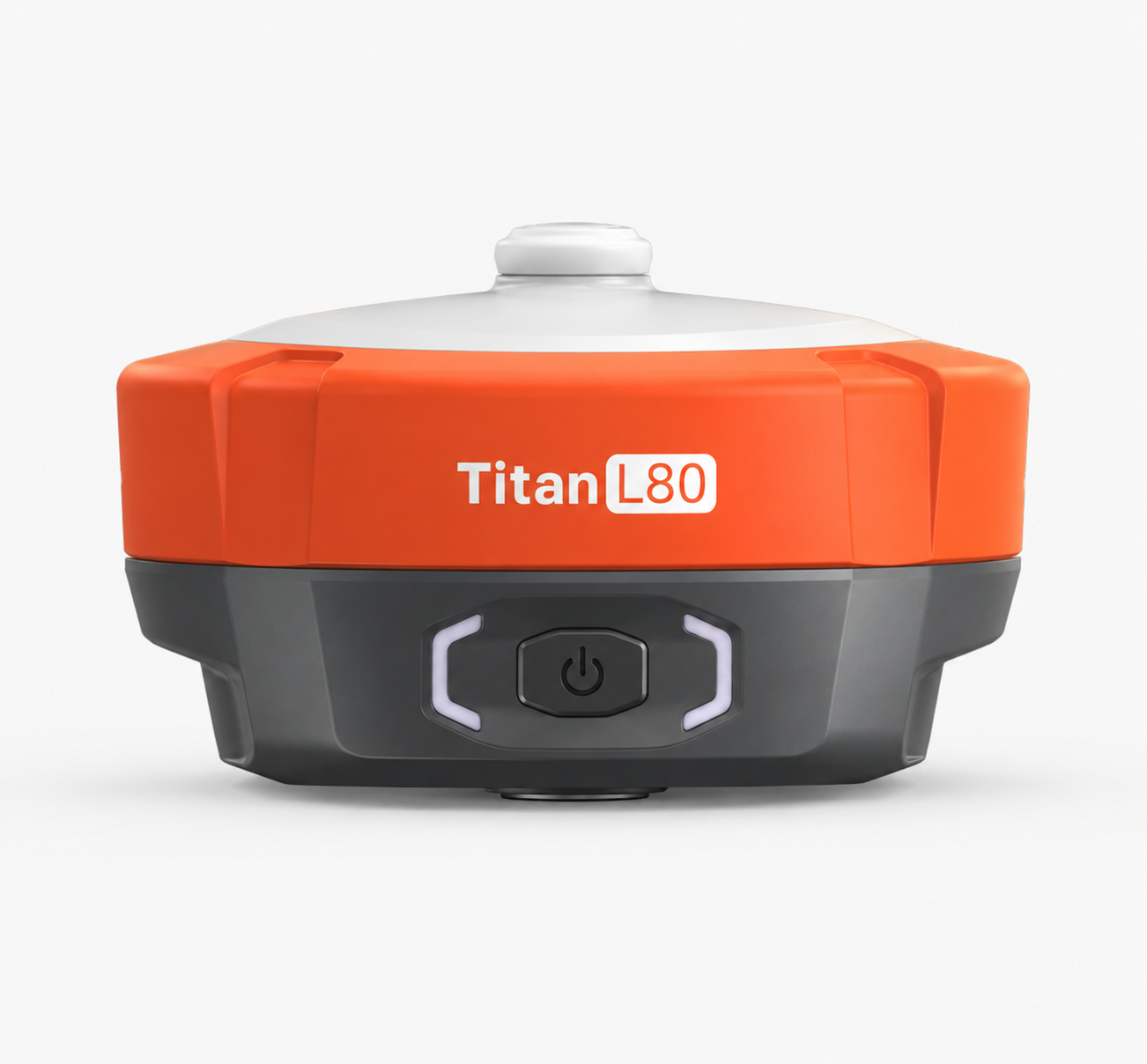

 Titan L80

5W Internal Radio GNSS Receiver

Positioning

  • GNSS : Full GNSS
  • IMU : 200 Hz
  • Measurement Accuracy. : 0.8 cm H / 1.5 cm V

Connectivity

  • Wireless : Bluetooth, Wi-Fi
  • Cellular : 4G Network
  • Modem : 410 - 470 MHz, Rx only
  • Air Baud Rate : 19200, 9600, 4800

Physical

  • Weight : 1.40 kg
  • Screen size : Φ156mm*93mm mm
  • Material : Magnesium aluminum alloy shell

Power and Battery

  • Power Supply : 6-28V DC, overvoltage protection
  • Battery : Internal Li-on, 13600mAh, 7.2V
